ASL15

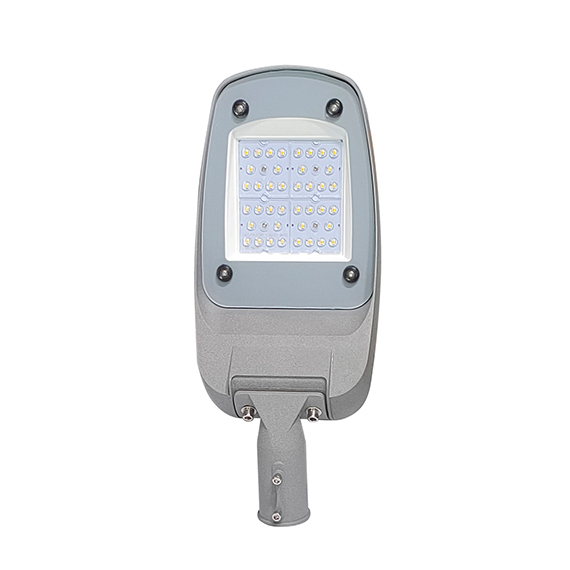

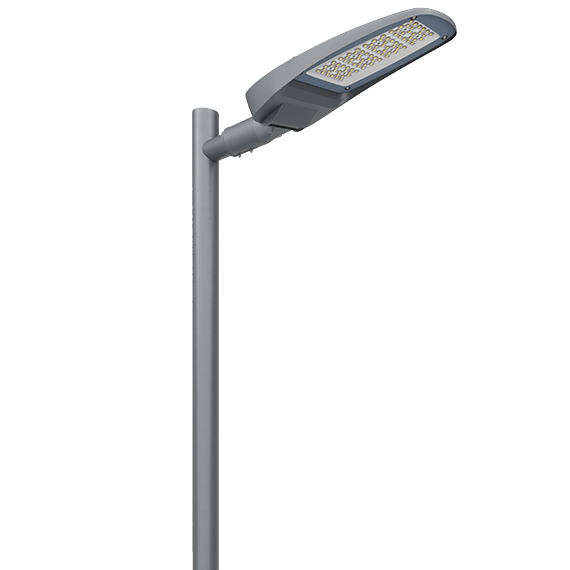

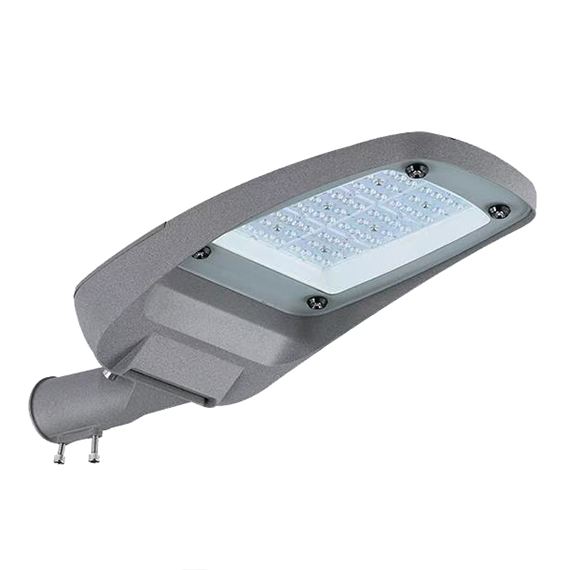

ASL15 PENGUINE SERIES are the best outdoor street lamp choice against water, rain and thunder. Moreover, it's easy to install and suitable for different applications because of its medium wide light distribution.
- In normal working conditions, the innovative street lights PENGUINE outdoor Street Lamp can reach 140 Lm/W.
- It is subdivided into 5 different sizes, which can save the investment cost of street lamps.
- With perfect price and high performance, it achieves IP66 protection level and anti-collision level IK08.
- And the customized commercial street lights can reach IK09 anti-collision grade.
- It supports changing the lens angle to achieve different light distribution types. Again this modal supports the installation of built-in light sensors, installation of NEMA bases and Zhaga bases. And it's compatible with all external controllers, motion sensors, and external light sensors.
● BRAND LED LAMP BEADS
HIGH BRIGHTNESS,HIGH COLOR RENDERING,LONG LIFESPAN
● BREAKER
THE DRIVER ROOM IS EQUIPPED WITH A SAFTY SWITCH TO ENSURE
THE SAFETY OF THE INSTALLATION AND MAINTENANCE PERSONNEL
| Product Model | Wattage | Input Voltage | Luminous Efficacy(MAX) | RA | Color Temperature | Beam Angle | PF | Pole diameter (mm) |
Dimension（mm） |
| ASL15-A | 10-40W |
AC100-277V |
140Lm/W | >70|80|90 | 2200-6500K | Type I | Type II | Type III | >0.9 | φ 40 | 420*180*100 |
| ASL15-B | 40-60W |
AC100-277V |
140Lm/W | >70|80|90 | 2200-6500K | Type I | Type II | Type III | >0.9 | φ 40 | 470*180*110 |
| ASL15-C | 60-100W |
AC100-277V |
140Lm/W | >70|80|90 | 2200-6500K | Type I | Type II | Type III | >0.9 | φ 60 | 560*240*115 |
| ASL15-D | 100-150W |
AC100-277V |
140Lm/W | >70|80|90 | 2200-6500K | Type I | Type II | Type III | >0.9 | φ 60 | 690*280*130 |
| ASL15-E | 150-200W |
AC100-277V |
140Lm/W | >70|80|90 | 2200-6500K | Type I | Type II | Type III | >0.9 | φ 60 | 740*280*130 |
PRODUCT DESCRIPTION
ASL15 PENGUINE SERIES are the best outdoor street lamp choice against water, rain and thunder. Moreover, it's easy to install and suitable for different applications because of its medium wide light distribution.
- In normal working conditions, the innovative street lights PENGUINE outdoor Street Lamp can reach 140 Lm/W.
- It is subdivided into 5 different sizes, which can save the investment cost of street lamps.
- With perfect price and high performance, it achieves IP66 protection level and anti-collision level IK08.
- And the customized commercial street lights can reach IK09 anti-collision grade.
- It supports changing the lens angle to achieve different light distribution types. Again this modal supports the installation of built-in light sensors, installation of NEMA bases and Zhaga bases. And it's compatible with all external controllers, motion sensors, and external light sensors.
● BRAND LED LAMP BEADS
HIGH BRIGHTNESS,HIGH COLOR RENDERING,LONG LIFESPAN
● BREAKER
THE DRIVER ROOM IS EQUIPPED WITH A SAFTY SWITCH TO ENSURE
THE SAFETY OF THE INSTALLATION AND MAINTENANCE PERSONNEL
SPECIFICATION
| Product Model | Wattage | Input Voltage | Luminous Efficacy(MAX) | RA | Color Temperature | Beam Angle | PF | Pole diameter (mm) |
Dimension（mm） |
| ASL15-A | 10-40W |
AC100-277V |
140Lm/W | >70|80|90 | 2200-6500K | Type I | Type II | Type III | >0.9 | φ 40 | 420*180*100 |
| ASL15-B | 40-60W |
AC100-277V |
140Lm/W | >70|80|90 | 2200-6500K | Type I | Type II | Type III | >0.9 | φ 40 | 470*180*110 |
| ASL15-C | 60-100W |
AC100-277V |
140Lm/W | >70|80|90 | 2200-6500K | Type I | Type II | Type III | >0.9 | φ 60 | 560*240*115 |
| ASL15-D | 100-150W |
AC100-277V |
140Lm/W | >70|80|90 | 2200-6500K | Type I | Type II | Type III | >0.9 | φ 60 | 690*280*130 |
| ASL15-E | 150-200W |
AC100-277V |
140Lm/W | >70|80|90 | 2200-6500K | Type I | Type II | Type III | >0.9 | φ 60 | 740*280*130 |
